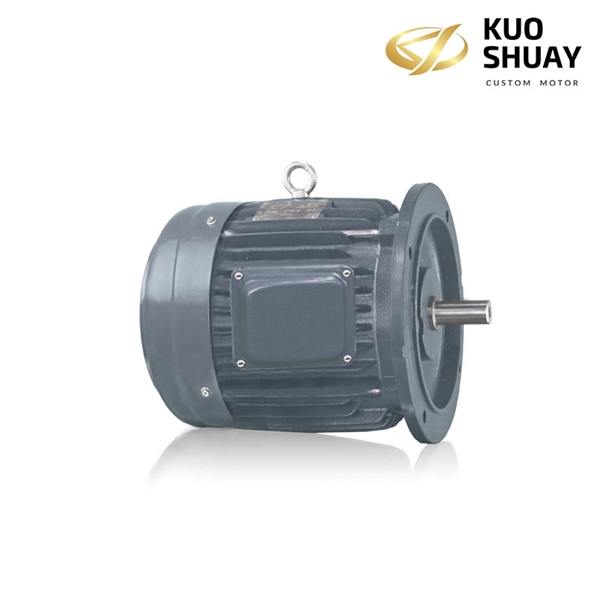

Flange Mounted Standard Cast Iron Motor
10HP General Purpose Motor, 3510RPM, Cast Iron Frame, VerticalFrame 132S, Efficiency 86.5%
- Flange mounted B5 installation
- Cast iron frame and end brackets, strong structure.
- IP54 protection.
- Service factor 1.15 (60Hz), 1.0 (50Hz), long lifecycle.
- High quality pre-lubricated bearings, easy maintenance.
Description10HP standard three phase motor is two-pole design, no-load speed is close to 3600rpm / 60Hz and 3000rpm / 50Hz. The applicable voltage can cover 200V, 220V, 230V, 240V, 380V, 400V, 415V, 440V, 460V, and 480V, reduce the inventory cost for the customer due to different voltage or target countries. The cast iron casing frame and front and rear cover can provide a robust structure for the motor, reduce vibration and noise. The certifications obtained include UL in North America, BSMI in Taiwan and CE in Europe, suitable for various industrial environments application in different countries.
3 Phase Standard AC Motor, Industrial Motor, Standard Induction Motor, B5 Electric Motor
Type: TEFC (Totally Enclosed Fan Cooled)
Certification (optional):UL, GB, CE, BSMI
