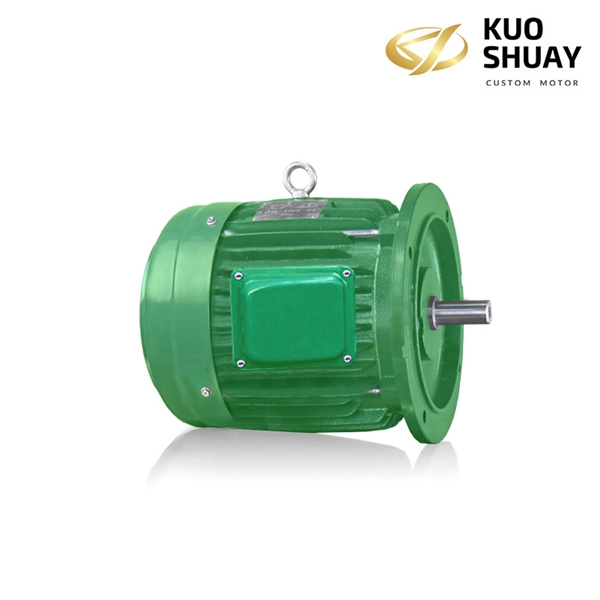

Flange Mounted IE3 Standard Cast Iron Motor
10HP IE3 General Purpose Motor, 3510RPM, Cast Iron Frame, Vertical
Frame 132S, Efficiency 91.5%- Features
- Special winding processing.
- No vibration and noise.
- F class insulation.
- IEC standard frame size and dimension.
- Suitable for wide range voltage and frequency (200V ~ 480V with 50HZ/60HZ).
- Low energy consumption, IE3 efficiency.
Description
A 10HP 2 poles high efficiency standard motor suitable for fans, water pumps and various industrial applications. According to the requirements of energy-saving regulations, the AEUH series meets the NEMA premium efficiency (equivalent to IE3) and gets approval from the Department of Energy (DOE) in U.S. The current certification includes UL, BSMI, CE and GB3. Customers are also welcome to discuss additional certification with us.Two-pole designed and no load speed is close to 3600 rpm. The motor adopts a totally enclosed structure with self-fan cooled system. The dustproof and waterproof protection level is IP54. Rated operating temperature is lower than that of traditional motors, and it uses F class insulation to improve the lifecycle of the motor.
3 Phase Standard AC Motor, Industrial Motor, Standard Induction Motor, B5 Electric Motor, IE3 Motor
DRAWING
Type: TEFC (Totally Enclosed Fan Cooled)
Certification (optional): UL, GB, CE, BSMI
