Foot Mounted Standard Cast Iron Motor
AEEF 5HP 2-Pole Cast Iron Foot Mounted Motor
Frame 112M, Efficiency 84.5%- Features
- Designed for large fans, water pumps, industrial HVAC systems.
- Ip54 tefc for dusty and humid environments.
- Pre-lubricated bearings, maintenance-free.
- Wide voltage 200-480V, 50/60Hz global use.
- Cast iron TEFC enclosure, IP54 dust & water protection.
- UL, BSMI, CE certified.
Description
The AEEF 5HP 2-pole cast iron motor delivers 3500RPM at 84.5% efficiency, serving large industrial fans, water pump systems, and HVAC blower installations. VFD compatible, enabling flexible speed adjustment under varying load conditions to improve overall system energy efficiency. The specially designed die-cast aluminum rotor provides outstanding starting characteristics, maintaining stability during heavy-load starts. The totally enclosed cast iron frame offers robust construction that blocks not only dust and water but also oil mist and other industrial contaminants, achieving IP54 protection. Lower operating temperature than conventional motors helps extend insulation system life. EU RoHS compliant. IEC frame 112M, wide voltage 200V to 480V, 50/60Hz. UL, BSMI, and CE certified.3 Phase Standard AC Motor, Industrial Motor, Standard Induction Motor, B3 Electric Motor

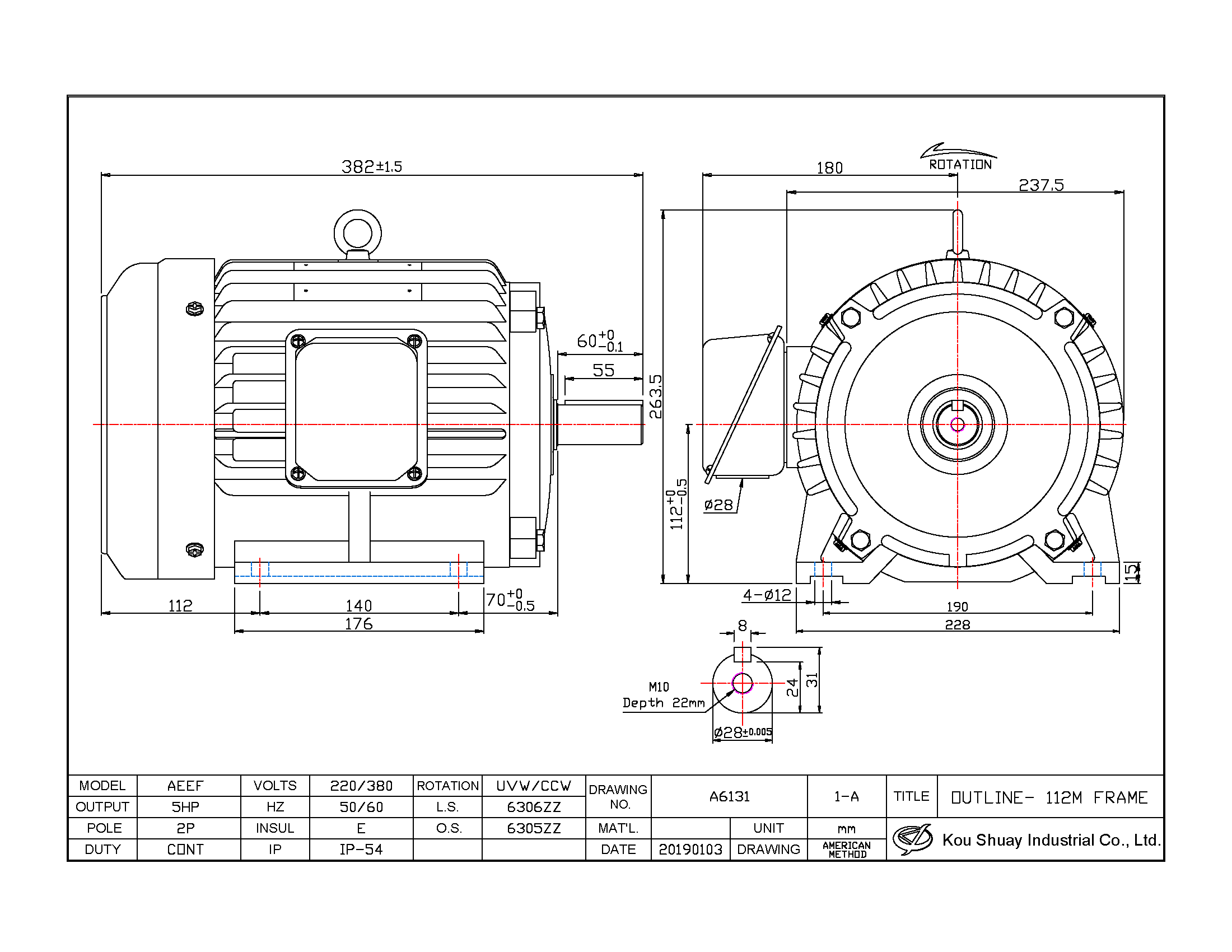

DRAWING
Type: TEFC (Totally Enclosed Fan Cooled)
Certification (optional): UL, GB, CE, BSMI
