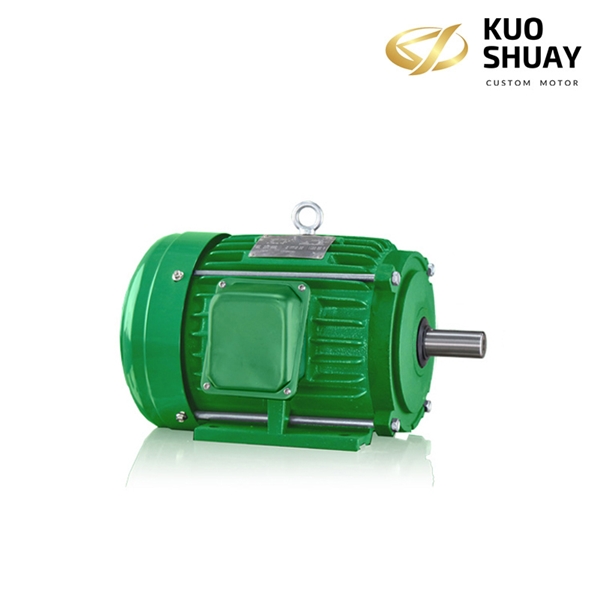

Foot Mounted IE3 Standard Cast Iron Motor
3HP IE3 General Purpose Motor, 1745RPM, Cast Iron Frame, HorizontalFrame 100L, Efficiency 89.5%
- Test procedure IEC 60034-2-1
- Continuous duty, S1
- IE3 high efficiency
- SF1.15 (60Hz), SF1.0 (50Hz), long lifecycle.
- High quality ball bearings
- Cast iron frame and end brackets, strong structure.
Description3HP 4P high efficiency IE3 standard motor is 6.5% (IE3: 89.5%, IE1: 83%) more efficient than traditional IE1 motors. For long-term use, it not only reduces energy consumption, but saves a considerable amount of electricity fee. Efficiency level complies with IE3 (European Union), NEMA Premium (U.S.). It gets the certification such as UL(North America), CE(Europe), BSMI(Taiwan) and GB2(China).
Install dimensions are well followed IEC international specifications, interchangeable and replaceable for general motors. Use voltages can cover from 200V to 480V, frequency 50Hz, 60Hz, and each voltage and frequency can reach IE3 efficiency. Kuo Shuay's UL laboratory can provide trusted test report to our customers.
3 Phase Standard AC Motor, Industrial Motor, Standard Induction Motor, B3 Electric Motor, IE3 Motor
Type: TEFC (Totally Enclosed Fan Cooled)
Certification (optional): UL, GB, CE, BSMI
