Custom Electric Motor

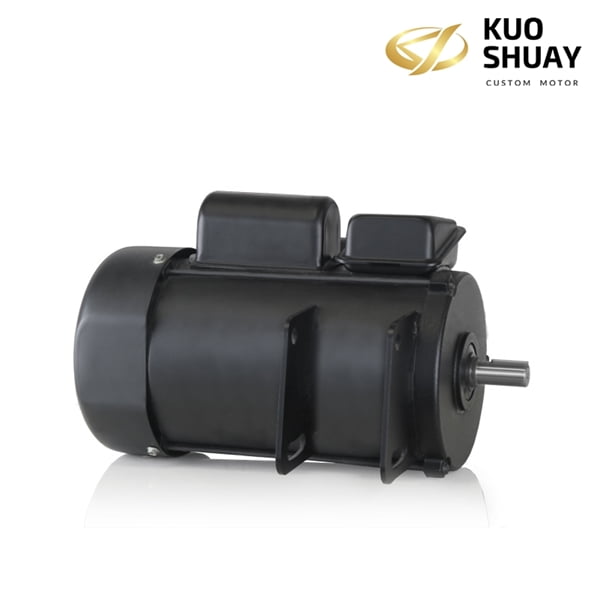

Table Saw Motor 5HP, 3 phase, diameter 165mm, 1700RPM, 230V / 460V, ODP

Woodworking Machine Motor
In response to the operating time for woodworking machine and cutting machine, intermittent duty motors (ex: S2, S6) could be design, which are more cost effective.
Class F insulation system, decreasing the size of motor and saving installation space.
Customized design performance is available, additional starting torque or maximum torque can be requested.
With different cutting materials, the protection of motor for water and dust proof can be upgraded, extending the service life of motor.
Product sold to EU pass RoHS compliance.


Customized woodworking machinery motor, applying to circular saw motor, planer motor, dust collector motor or cutting machine, are designed with outstanding water and dust protection, small frame size and high output torque. As a professional motor design manufacturer, Kuo Shuay could provide excellent customized solution for you and offer a more competitive option.


Phase Single, Three
Output 1 / 3HP ~ 7.5HP
Pole 2P、4P
Voltage Single 100V ~ 240V / Three 200V ~ 575V
Frequency 50 / 60HZ
Insulation A, E, B, F
IP Code IP44 ~ IP55

Specifications can be adjusted according to customer needs
