IE4高效節能馬達

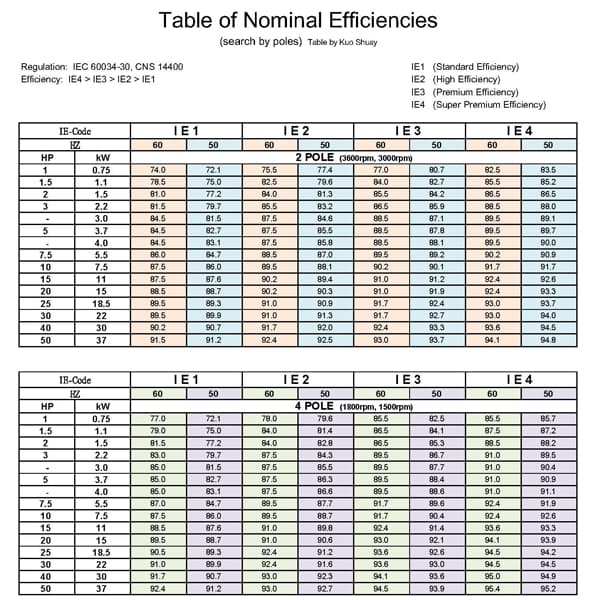

馬達額定效率等級表 (下載)

依極數查詢

介紹

IE1 (高效率 Standard Efficiency)
IE2 (優級效率 High Efficiency)
IE3 (超高效率 Premium Efficiency)
IE4 (超優級效率 Super Premium Efficiency)

能源效率等級 (IEC 60034-30-1) 查詢

IE-Code I E 1 I E 2  I E 3  I E 4
HZ 60 50 60 50 60 50 60 50
HP kW 2 POLE (3600rpm, 3000rpm)
1 0.75 74.0 72.1 75.5 77.4 77.0 80.7 82.5 83.5
1.5 1.1 78.5 75.0 82.5 79.6 84.0 82.7 85.5 85.2
2 1.5 81.0 77.2 84.0 81.3 85.5 84.2 86.5 86.5
3 2.2 81.5 79.7 85.5 83.2 86.5 85.9 88.5 88.0
- 3.0 84.5 81.5 87.5 84.6 88.5 87.1 89.5 89.1
5 3.7 84.5 82.7 87.5 85.5 88.5 87.8 89.5 89.7
- 4.0 84.5 83.1 87.5 85.8 88.5 88.1 89.5 90.0
7.5 5.5 86.0 84.7 88.5 87.0 89.5 89.2 90.2 90.9
10 7.5 87.5 86.0 89.5 88.1 90.2 90.1 91.7 91.7
15 11 87.5 87.6 90.2 89.4 91.0 91.2 92.4 92.6
20 15 88.5 88.7 90.2 90.3 91.0 91.9 92.4 93.3
25 18.5 89.5 89.3 91.0 90.9 91.7 92.4 93.0 93.7
30 22 89.5 89.9 91.0 91.3 91.7 92.7 93.0 94.0
40 30 90.2 90.7 91.7 92.0 92.4 93.3 93.6 94.5
50 37 91.5 91.2 92.4 92.5 93.0 93.7 94.1 94.8

IE-Code I E 1 I E 2  I E 3  I E 4
HZ 60 50 60 50 60 50 60 50
HP kW 4 POLE (1800rpm, 1500rpm)
1 0.75 77.0 72.1 78.0 79.6 85.5 82.5 85.5 85.7
1.5 1.1 79.0 75.0 84.0 81.4 86.5 84.1 87.5 87.2
2 1.5 81.5 77.2 84.0 82.8 86.5 85.3 88.5 88.2
3 2.2 83.0 79.7 87.5 84.3 89.5 86.7 91.0 89.5
- 3.0 85.0 81.5 87.5 85.5 89.5 87.7 91.0 90.4
5 3.7 85.0 82.7 87.5 86.3 89.5 88.4 91.0 90.9
- 4.0 85.0 83.1 87.5 86.6 89.5 88.6 91.0 91.1
7.5 5.5 87.0 84.7 89.5 87.7 91.7 89.6 92.4 91.9
10 7.5 87.5 86.0 89.5 88.7 91.7 90.4 92.4 92.6
15 11 88.5 87.6 91.0 89.8 92.4 91.4 93.6 93.3
20 15 89.5 88.7 91.0 90.6 93.0 92.1 94.1 93.9
25 18.5 90.5 89.3 92.4 91.2 93.6 92.6 94.5 94.2
30 22 91.0 89.9 92.4 91.6 93.6 93.0 94.5 94.5
40 30 91.7 90.7 93.0 92.3 94.1 93.6 95.0 94.9
50 37 92.4 91.2 93.0 92.7 94.5 93.9 95.4 95.2

IE-Code I E 1 I E 2  I E 3  I E 4
HZ 60 50 60 50 60 50 60 50
HP kW 6 POLE (1200rpm, 1000rpm)
1 0.75 72.0 70.0 80.0 75.9 82.5 78.9 84.0 82.7
1.5 1.1 75.0 72.9 85.5 78.1 87.5 81.0 88.5 84.5
2 1.5 77.0 75.2 86.5 79.8 88.5 82.5 89.5 85.9
3 2.2 78.5 77.7 87.5 81.8 89.5 84.3 90.2 87.4
- 3.0 83.5 79.7 87.5 83.3 89.5 85.6 90.2 88.6
5 3.7 83.5 80.9 87.5 84.3 89.5 86.5 90.2 89.3
- 4.0 83.5 81.4 87.5 84.6 89.5 86.8 90.2 89.5
7.5 5.5 85.0 83.1 89.5 86.0 91.0 88.0 91.7 90.5
10 7.5 86.0 84.7 89.5 87.2 91.0 89.1 92.4 91.3
15 11 89.0 86.4 90.2 88.7 91.7 90.3 93.0 92.3
20 15 89.5 87.7 90.2 89.7 91.7 91.2 93.0 92.9
25 18.5 90.2 88.6 91.7 90.4 93.0 91.7 94.1 93.4
30 22 91.0 89.2 91.7 90.9 93.0 92.2 94.1 93.7
40 30 91.7 90.2 93.0 91.7 94.1 92.9 95.0 94.2
50 37 91.7 90.8 93.0 92.2 94.1 93.3 95.0 94.5


法規依據: IEC60034-2-30, CNS14400, DOE 10CFR-431
